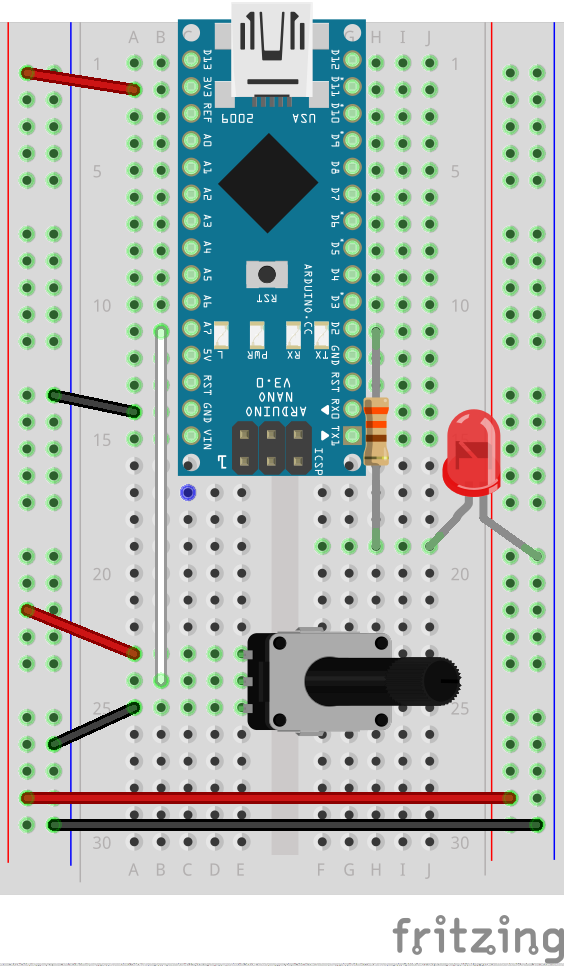

// constants for the pins | |
const int ledPin = 2; | |
const int potPin = A7; | |
void setup() { | |
// set the led pin as an output | |
pinMode(ledPin, OUTPUT); | |
// open the serial port for communication | |
Serial.begin(9600); | |
while(!Serial){ | |
;; // do nothing until the serial port opens | |
} | |
} | |
void loop() { | |
// read the value of the pin and store it | |
// this will be in a range of 0-1023 | |
int potVal = analogRead(potPin); | |
// print the value to the monitor | |
Serial.print("pot value: "); | |
Serial.print(potVal); | |
// map the value to the range of analogOut | |
// store that in a new variable | |
int ledVal = map(potVal, 0, 1023, 0, 255); | |
// print the value to the monitor | |
Serial.print(", mapped value: "); | |
Serial.println(ledVal); | |
// write the value to the LED | |
analogWrite(ledPin, ledVal); | |
// give the ADC a moment to rest | |
delay(10); | |
} |
