108 byte CSS Layout Debugger

CSS Layout Debugger

A tweet-sized debugger for visualizing your CSS layouts. Outlines every DOM element on your page a random (valid) CSS hex color.

One-line version to paste in your DevTools

Use $$ if your browser aliases it:

~ 108 byte version

[].forEach.call($$("*"),function(a){a.style.outline="1px solid #"+(~~(Math.random()*(1<<24))).toString(16)})

Using document.querySelectorAll:

~ 131 byte version

[].forEach.call(document.querySelectorAll("*"),function(a){a.style.outline="1px solid #"+(~~(Math.random()*(1<<24))).toString(16)})

~73 byte code-golfed version by @xem

$$('*').map(A=>A.style.outline=`1px solid hsl(${(A+A).length*9},99%,50%`)

~66 byte code-golfed version by @daliborgogic

$$('*').map((A,B)=>A.style.outline=`1px solid hsl(${B*B},99%,50%`)

If you're looking for a proper version that uses a set color per tag type, check out pesticide.io.

Screenshots

Tested from Chrome DevTools:

Tested from Firefox DevTools:

Tested from WebKit Nightlies (Safari):

Tested in IE:

Thanks to gregwhitworth for verifying.

Tag Specific Layout Debugging In 82 Bytes

My original implementation outlined each DOM element on the page with a random (valid) hex color.

Thanks to the work by @aemkei, @p01, @sindresorhus and other commenters, we now have an even shorter version (108 bytes golfed down to 82) that uses a specific hex color per tag name. This lets you visually group elements similar to how pesticide.io does.

for(i=0;A=$$("*")[i++];)A.style.outline="solid hsl("+(A+A).length*9+",99%,50%)1px"

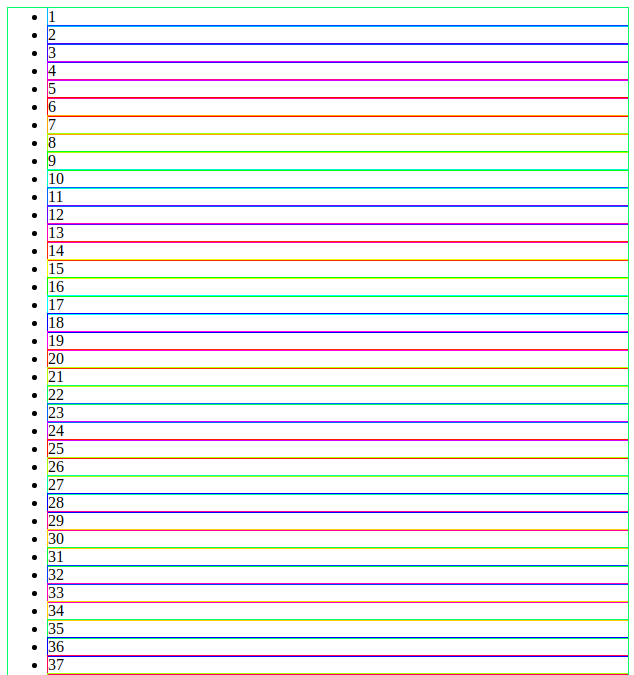

Preview:

Thanks for the awesome help improving this folks <3

function(a){ // Supply a valid selector (e.g '*' for wildcard)
[].forEach.call( // Treat Nodelist as an Array (fewer bytes than Array.prototype.forEach.call(...);)
// Gets the prototype of Array & uses call to execute the function on the NodeList.
document.querySelectorAll(a), // Query DOM for elements matching the supplied selector
// (For 108 bytes, use $$() as Chrome, Safari & FF expose it in DevTools)
function(b){
b.style.outline = "1px solid #" + // Set the selector outline
(~~(Math.random()*(1<<24))) // Pick a valid random CSS hex color
.toString(16)}) // Convert to a base 16 number. BOOM.
}
function(a){return [].forEach.call(document.querySelectorAll(a),function(b){b.style.outline = "1px solid #" +(~~(Math.random()*(1<<24))).toString(16)});}
{
"name": "CSSLayoutDebugger",
"description": "A helper for debugging CSS layouts",
"keywords": [
"css",
"layout",
"debugger"
]
}
<!DOCTYPE html>
<title>CSS Layout Debugger</title>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<div>I am element</div>
<script>
var myFunction = function(a){ // Supply a valid selector (e.g '*' for wildcard)
[].forEach.call( // Treat Nodelist as an Array (fewer bytes than Array.prototype.forEach.call(...);)
// Gets the prototype of Array & uses call to execute the function on the NodeList.
document.querySelectorAll(a), // Query DOM for elements matching the supplied selector
// (For 110 bytes, use $$() as Chrome, Safari & FF expose it in DevTools)
function(b){
b.style.outline = "1px solid #" + // Set the selector outline
(~~(Math.random()*(1<<24))) // Pick a valid random CSS hex color
.toString(16)}) // Convert to a base 16 number. BOOM.
}
myFunction('*');
</script>
<!-- quick JSBin:http://jsbin.com/soseq/2/edit -->
@daliborgogic
Copy link

daliborgogic commented Jul 29, 2017

# ~66 bytes
$$('*').map((A,B)=>A.style.outline=`1px solid hsl(${B*B},99%,50%`)
# ~64 bytes but not so colorful
$$('*').map((A,B)=>A.style.outline=`1px solid hsl(${B},99%,50%`)

rainbow

@streamich
Copy link

streamich commented Sep 8, 2017

57 bytes:

[...document.all].map(a=>a.style.outline="1px solid red")

@nitinja
Copy link

nitinja commented Oct 27, 2017

I think we should try to minimize the number of outlines. More dom elements present on the page, slower it gets.

@addyosmani
Copy link
Author

@daliborgogic Nice work further code-golfing! Looks pretty alight :)


@daliborgogic
Copy link

daliborgogic commented Dec 21, 2017

@addyosmani Thank you : )

@daliborgogic
Copy link

@nitinja I agree, but this is not for production.

@boi23
Copy link

boi23 commented Aug 20, 2018

Im havin trouble with my css can u help me

@n00b21337
Copy link

I made a module for drupal inspired by this code https://www.drupal.org/project/css_debuger
I added option to show/hide boxes with alt+c

@shinsenter
Copy link

Very useful. String interpolation does not work on IE.

@shinsenter
Copy link

Here is bookmarklet version:

javascript:[].slice.call(document.querySelectorAll("*")).map(function(l,e){l.style.outline="1px solid hsl("+(e*e)+",90%,50%)"})

@noobalex
Copy link

Perhaps you need a bookmark to restore the layout

javascript:[].slice.call(document.querySelectorAll("*")).map(function(l,e){l.style.outline="none"})

@y4rr
Copy link

y4rr commented Dec 27, 2020

Perhaps you'd like to have just one bookmarklet instead of two. And nicer colors.

Properly escaped code for the bookmarklet:

javascript:(function()%7B%5B%5D.slice.call(document.querySelectorAll(%22*%22)).map(function(l%2Ce)%7Bl._CSSDEBUG%3D!l._CSSDEBUG%3Bl.style.outline%3Dl._CSSDEBUG%3F%22solid%20hsl(%22%2B(l%2Bl).length*13%2B%22%2C45%25%2C55%25)0.1rem%22%3A%22initial%22%7D)%7D)()

Source:

javascript:[].slice.call(document.querySelectorAll("*")).map(function(l,e){l._CSSDEBUG=!l._CSSDEBUG;l.style.outline=l._CSSDEBUG?"solid hsl("+(l+l).length*13+",45%,55%)0.1rem":"initial"})

@dziku86
Copy link

dziku86 commented Feb 21, 2021

1 byte can be shaved with Q unit if you are not using Safari/IE:

$$('*').map((A,B)=>A.style.outline=`1q solid hsl(${B*B},99%,50%`)

@amir2mi
Copy link

amir2mi commented May 18, 2021

57 bytes:
[...document.all].map(a=>a.style.outline="1px solid red")

Hi, @streamich thanks! it is possible with CSS, the random color is the point.
