how to issue commands and monitor the devtools protocol

Playing with the protocol

You can send arbitrary commands over the protocol fairly easily.

Main.sendOverProtocol('Emulation.setDeviceMetricsOverride', nexus5XMetrics());
Main.sendOverProtocol("Emulation.clearDeviceMetricsOverride");

// It returns a promise
Main.sendOverProtocol("Page.captureScreenshot").then(data => {
  // ...
});


function nexus5XMetrics() {
  return {
    mobile: true,
    screenWidth: 412,
    screenHeight: 732,
    width: 412,
    height: 732,
    positionX: 0,
    positionY: 0,
    scale: 1,
    deviceScaleFactor: 2.625,
    fitWindow: false,
    screenOrientation: {
      angle: 0,
      type: 'portraitPrimary'
    }
  };
};


Logging protocol activity

Try out the Protocol monitor panel. It's a hidden devtools experiment.

https://umaar.com/dev-tips/166-protocol-monitor/

Monkeypatch Alternative

This snippet will log all the protocol traffic to the console.

// This will log all protocol traffic to the console
const mainConnection = SDK.targetManager.mainTarget()._connection;

const _onMsg = mainConnection._onMessage;
const _sendMessage = mainConnection.__proto__.sendMessage;

mainConnection._onMessage = function(message) {
    console.log('received: ', typeof message === "string" ? JSON.parse(message) : message);
    _onMsg.apply(this, arguments);
}

mainConnection.__proto__.sendMessage = function(message) {
    console.log('sending : ', typeof message === "string" ? JSON.parse(message) : message);
    _sendMessage.apply(this, arguments);
}


dumpInspectorProtocolMessages Alternative

Instead of using the logging snippet, you can set Protocol.InspectorBackend.Options.dumpInspectorProtocolMessages = true. It does basically the same thing, but the objects are stringified, making it slightly messier to read. image

@kdzwinel

This comment has been minimized.

Copy link

@kdzwinel kdzwinel commented Dec 8, 2016

WebInspector is no more.

WebInspector.sendOverProtocol ➡️ Main.sendOverProtocol
WebInspector.targetManager ➡️ SDK.targetManager

@paulirish

This comment has been minimized.

Copy link
Owner Author

@paulirish paulirish commented Dec 9, 2016

thx. updated.

@sliminality

This comment has been minimized.

Copy link

@sliminality sliminality commented Jan 6, 2017

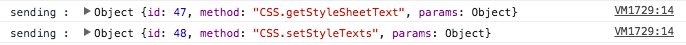

In its current form, the snippet for logging protocol activity also stringifies "sent" messages:

sent messages are stringified

Adding a JSON.parse to the following line:

mainConnection.__proto__.sendMessage = function(message) {
    // OLD: console.log('sending : ', message);
    console.log('sending : ', JSON.parse(message));
    _sendMessage.apply(this, arguments);
}

results in nicely printed messages.

now they are printed nicely

@paulirish

This comment has been minimized.

Copy link
Owner Author

@paulirish paulirish commented Dec 19, 2017

thx! updated. and tweaked again because things change.

@TombWater

This comment has been minimized.

Copy link

@TombWater TombWater commented Aug 20, 2018

It looks like the alternative should now be:
Protocol.InspectorBackend.Options.dumpInspectorProtocolMessages = true

@paulirish

This comment has been minimized.

Copy link
Owner Author

@paulirish paulirish commented Aug 20, 2018

@tombh2o thanks! the Protocol Monitor is now the best way to do this kinda inspection:
https://umaar.com/dev-tips/166-protocol-monitor/
