Instructions for how to affix an Ikea Gerton table top to the Ikea Bekant sit-stand desk frame.

Ikea Bekant standing desk with Gerton table top

We've had our Ikea Bekant sit-stand desk for around a year now and we're big fans. It's easy to put together, feels sturdy enough, and only cost $529 for top and frame. However, I've never liked the particle board top with its plastic edging.

Still, it wasn't enough to deter me from wanting to pickup a second for proper his and her's workstations, so we headed to Ikea to pickup another. While there we stumbled upon the $90 Gerton all wood table top. We immediately loved it over the Bekant tops, so we picked up two, one for the new desk and one for the old.

Putting the Gerton table top on the Bekant frame requires some manual labor and extra supplies though, much more than your standard Ikea build process. You'll need to drill holes into your Gerton table top. The size of those holes is dependent on your method of attaching the frame. You can either re-use the Ikea plastic hardware, or you can head to Home Depot and pickup some custom hardware (I chose the latter). Fair warning: no matter the build, you'll need a power drill.

Below are instructions for modifying the two pieces to work together with some custom hardware from Home Depo. They're not perfect, but I figure it could help others as a reference guide.

Prep and supplies

Use these instructions if you're interested in visiting Home Depot to purchase custom screws and fasteners to connect your table top to your desk frame.

Hardware needed

ProTips:

  • You only need 4-6 individual insert nuts, machine screws, and washers—not 4-6 packs of the above items. Some links are to 5-counts, others to 100-count packages.
  • Why four to six? Depends on how many holes you want to drill. More on that later.
  • The 20 in those insert nuts and screws refers to the thread count. Make sure numbers these match.
  • I couldn't find the required machine screws individually; I had to buy these combo screw-nut packs at Home Depot.

Equipment needed

Instructions

1. Assemble most of the Bekant frame.

Follow the provided instruction manual up through Step 4 to assemble the cross beams, electric motors, and frame legs. You'll only need the allen wrench for this part.

ikea-step-1 ikea-step-2 ikea-step-3 ikea-step-4

2. Prep Gerton table top

Next, we have to prep our Gerton table top for drilling. The Gerton table top doesn't include holes that match up with the Bekant frame, so we have to do this ourselves. You'll need your measuring tape, pencil, power drill, and drill stop (or masking tape) for this part.

Lucky for us the Gerton table top is exactly 2" narrower and 2" shallower than the Bekant desk top. That makes for easy math on our part.

  • Gerton table top: 61" x 29.5"
  • Bekant desk: 63" x 31.5"

With the Gerton table top upside down on the floor (carpet, or put a towel/blanket under), measure 5.75" from the front and back and 1.75" from the left and right sides. Here's a rough diagram on the placement.

ikea-gerton-bekant-diagram

Mark off those dimensions with your pencil, and draw additional lines as needed.

progress measurement and line

Now grab one of the frame rails from Step 6 in your instruction manual. On each side, line up the frame rail over those measurements you just penciled onto the table. You'll see about 1/16" overlap on the front-back measurements, so eyeball it as needed. When lined up, pencil in the outermost holes from the frame rail, like so.

progress measurement, line, and drill hole

Heads up! I skipped the middle frame rail that's shown in Step 5 of the instruction manual. This is where the 4-6 screws and insert nuts variance comes in. It didn't seem super necessary and is easily addressed. After you attach the frame rails to the table top, place the frame with centered middle rail over the table (roughly 19" from either electric motor bit). Pencil in the holes, remove the frame, drill, apply insert nuts, and assemble.

3. Drill holes, hammer in insert nuts, attach frame rails

When you're done drawing those frame rail holes, it's time to drill and hammer in the insert nuts. Insert nuts are used for added grip in the wood; their star-like configuration keeps things nice and stable, making future disassembly and reassembly super easy.

As noted on the insert nuts packaging, you should drill 5/8" deep with a 11/32" drill bit. I lacked a legit drill stop, so masking tape was the perfect solution. Wrap your drill bit in masking tape, leaving 5/8" on the end.

When ready, drill in the center of those penciled circles you drew. It's okay to be a little off we have wiggle room on the frame rails, but do try to stay in the lines :). Keep your drill at it's lowest speed, pump the trigger, and you'll be fine.

When the holes are drilled, hammer in those insert nuts—two on each side.

Heads up! I got carried away in this next photo and drilled too many holes. Don't worry about that, all you need is the outer holes from the frame rails (which is what Ikea shows with their default instructions).

in progress insert nut

4. Attach the rails

Now that we have something to screw the frame into, we can do just that. Snag your 4x screws, 4x washers, and screwdriver. Attach the frame rails, but don't tighten them completely just yet; we'll want some wiggle room next.

in progress attaching rails

5. Attach the frame

Next up, bring over the Bekant frame from our first step here. Place it right in the middle begin to attach it to the second and fourth holes in those frame rails with the included allen wrench and bolts.

For reference, see those two nerds in the bottom right of this photo? That's what you're doing here :).

ikea step 6

When you're feeling like it's about lined up, tighten up the bolts to the frame (as shown below from the Ikea instructions) and the screws to the table.

ikea step 7

Then, flip it over. Done-zo!

bekant sit stand black with gerton top

Using Ikea's hardware

Follow steps above, but with these modifications, to re-use the Bekant plastic fasteners that come with the frame. Note that I haven't tried this method, so I have no specific photos to help. All of this is guess work right now.

You'll still need to follow the custom hardware instructions above, but a couple things are different.

  • Instead of an 11/32" drill bit, use a 10mm drill bit.
  • Instead of drilling 5/8" deep, drill 10mm deep.
  • Instead of marchine screws and insert nuts, use the provided plastic fasteners from Ikea.

Here are the fasteners you'll need. Push in the pronged part, then insert the doodad to snap them into place.

ikea fasteners

@serradino

This comment has been minimized.

Copy link

@serradino serradino commented Jul 28, 2017

hank you so much for sharing this project.

Today I made my standing desk.

I bought the SKARSTA Underframe sit/stand table top that is cheaper because it's manual.

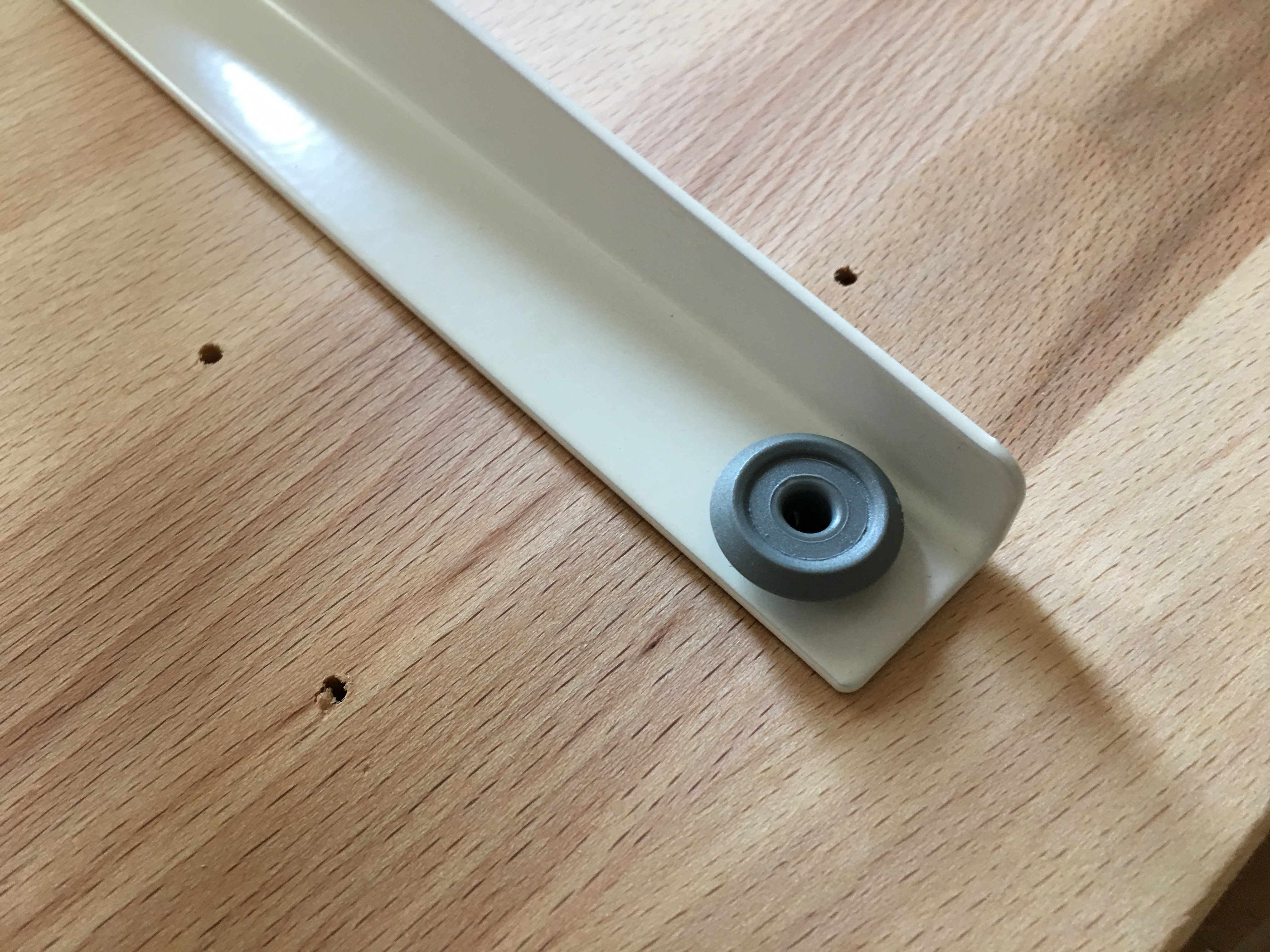

I used the plastic fasteners and it worked perfectly !

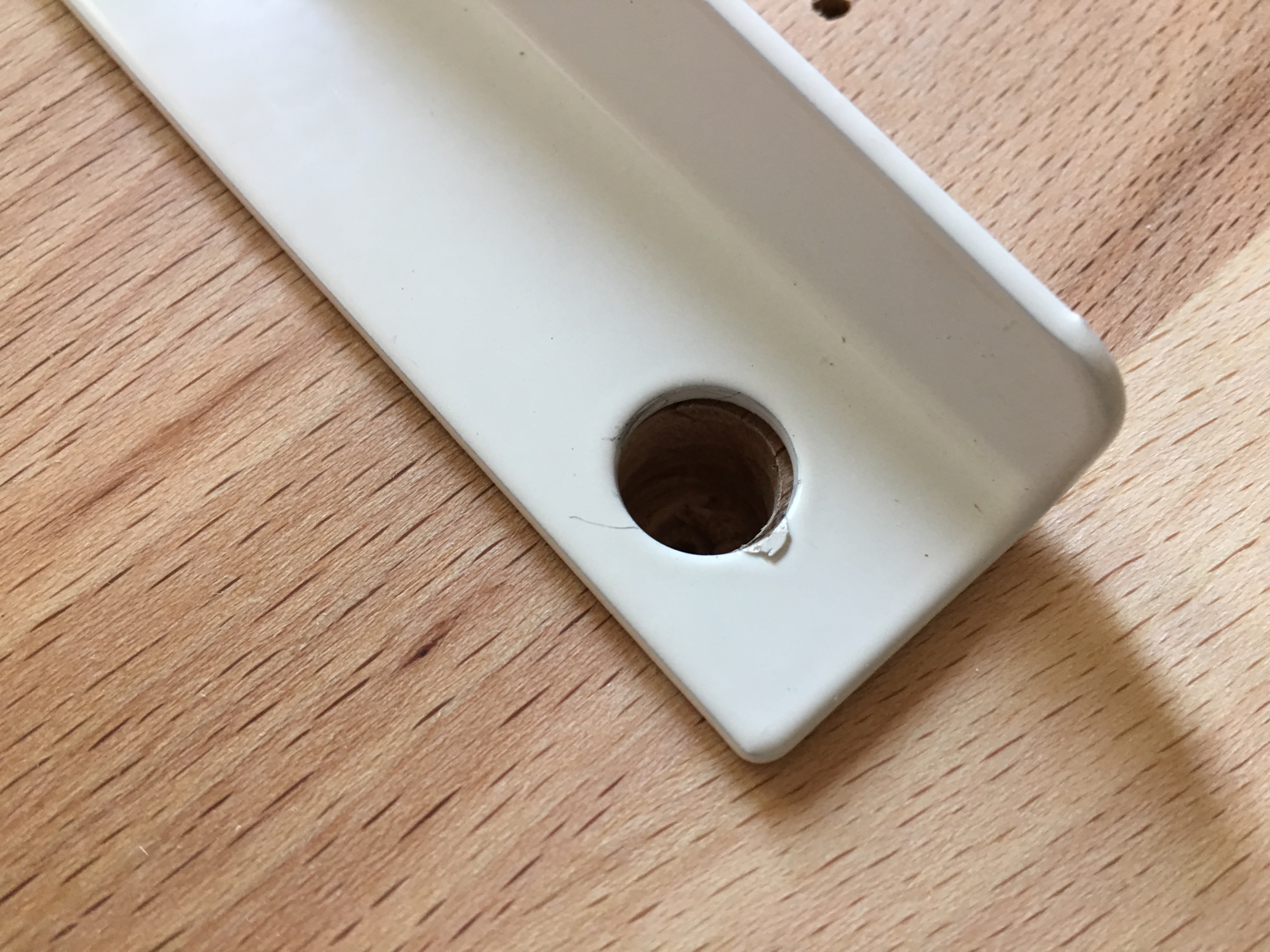

I had to drill holes with 10mm and 5mm drill bit.

Here some pics:
2017-07-27 11 12 58
2017-07-27 11 13 03
2017-07-27 11 13 19
2017-07-27 11 15 23
2017-07-27 12 05 41
2017-07-27 12 10 58
2017-07-27 12 11 04

@joemcmahon

This comment has been minimized.

Copy link

@joemcmahon joemcmahon commented Aug 13, 2017

Thanks - I had the connectors wrong trying to attach the regular Bekant desktop and your photos helped me see my error.

@robertvklinken

This comment has been minimized.

Copy link

@robertvklinken robertvklinken commented Aug 29, 2017

Thanks for sharing!

@nswamy

This comment has been minimized.

Copy link

@nswamy nswamy commented Dec 12, 2017

Thank you, this is exactly what I was looking for!

@nswamy

This comment has been minimized.

Copy link

@nswamy nswamy commented Dec 17, 2017

I assembled the Ikea Gerton table top to the regular Ikea Bekant underframe(not the sit stand), these instructions work except that you have to use 1.75 inch screws 1/4-20 x 1-3/4 in machine screws. Of course you have to drill the holes at the appropriate place.

@sc0ttman

This comment has been minimized.

Copy link

@sc0ttman sc0ttman commented Jan 16, 2018

I did the same mod as @serradino but using the metal insert nuts as @mdo suggested. 🎉

@SalvatorBruno

This comment has been minimized.

Copy link

@SalvatorBruno SalvatorBruno commented Jan 27, 2018

I had a success using the original plastic fasteners for Bekant + Gerton combo.

One thing you want to be careful about is the middle metal rail if you want to use it. It is not symmetrical, therefor it will not work if you just attach it to the middle of the table desk. I recommend this:

  1. first attach the two on the side
  2. then put the frame onto it where you want it to be
  3. mark with a pencil where the middle rail should be
  4. remove the frame
  5. attach the middle rail

bekant gerton_1

Another issue is where to drill the 4 corner holes for the cable holding net. Here is what worked for me:

bekant gerton_2

Good luck. The table top looks really nice. Next step for me is oiling the wood for protection against stains.

@alexamorales

This comment has been minimized.

Copy link

@alexamorales alexamorales commented Apr 19, 2018

I assembled the Ikea Gerton table top to the regular Ikea Bekant underframe(not the sit stand), these instructions work except that you have to use 1.75 inch screws 1/4-20 x 1-3/4 in machine screws. Of course you have to drill the holes at the appropriate place.

@nswamy What is the size of BEKANT underframe in your case?

@salmankhann

This comment has been minimized.

Copy link

@salmankhann salmankhann commented Apr 27, 2018

@mdo where did you attach the up/down controls?

@ziwzih

This comment has been minimized.

Copy link

@ziwzih ziwzih commented Jun 25, 2018

@serradino Very late on this thread but, that looks awesome man! I am thinking of doing the same thing. The skarsta says it has a weight limit of 120lbs and the gerton is 60lbs. Have you had any issues, did that concern you at all?

@idrysdale

This comment has been minimized.

Copy link

@idrysdale idrysdale commented Aug 23, 2018

I also opted for the SKARSTA Underframe here in the UK. I bought these bits from Screwfix, too:

The SKARSTA Underframe says it's max load is 25kg, and the GERTON weighs in at 26.74 kg. It's felt stable enough working with a laptop and monitor.

Thanks for the guide!

@matthewpetch

This comment has been minimized.

Copy link

@matthewpetch matthewpetch commented Oct 10, 2018

This is great. I was just looking at the BEKANT legs (the cheap ones) and the GERTON top wishing they'd be compatible, then I stumble upon this!

@elliotwoods

This comment has been minimized.

Copy link

@elliotwoods elliotwoods commented Oct 15, 2018

Here's a DXF of the hole pattern for the Bekant leg mounting
https://www.dropbox.com/s/nazuob0cr44af4y/Bekant%20Hole%20Pattern.dxf?dl=0


Notes:

  • I haven't finished assembling yet (the surface comes tomorrow) so this isn't 100% verified yet
  • The 600x1800mm surface in the drawing can be ignored - that's just my personal one
@elliotwoods

This comment has been minimized.

Copy link

@elliotwoods elliotwoods commented Oct 28, 2018

Also of note, here we made one desk with the M6 insert nuts, and 2 desks with the provided plastic fasteners.
I strongly recommend using the provided plastic fasteners because it is much easier, and you don't need any more hardware.

@gr2m

This comment has been minimized.

Copy link

@gr2m gr2m commented Mar 2, 2019

Thanks for sharing! I want to turn our Bakent standing desk into a feeding table :) I’ll post images from the process

@nickarora

This comment has been minimized.

Copy link

@nickarora nickarora commented Apr 20, 2019

First, I wanted to say thanks! this gist helped me out as I went through the process -- I wanted to contribute some trouble shooting tips in case others run into the same issues:

  1. If you hit the insert nuts at the wrong angle with your hammer, you can potentially damage/warp them. They'll lay flush with the table but you won't be able to screw anything in! If this happens to you, pick up a 1/4-20 tap and a tap wrench. You can clean up and damage done to the inner threads using this method.

  2. When you are done, don't forget to give your desktop a rubdown with danish oil. it'll protect it from coffee stains and dings

@nickarora

This comment has been minimized.

Copy link

@nickarora nickarora commented Apr 20, 2019

Forgot to mention -- you can avoid damage to the insert nuts preemptively by pounding them in with the bolt already loosely screwed in!

@grantland

This comment has been minimized.

Copy link

@grantland grantland commented Jun 25, 2019

I was able to follow the metal insert but instructions to use a 3/4" Baltic birch plywood top on my Skarsta crank sit/stand desk. The only problem was that the insert nuts weren't hammering in easily, so I had to use my arbor press which made it really easy.

@yuraymondl

This comment has been minimized.

Copy link

@yuraymondl yuraymondl commented Jul 31, 2019

I understand that the 1/4 inch bolts are quite a bit smaller than the drilled holes on the bekant frame. Are you guys getting any lateral play between the tabletop and the frame? I was thinking of using 3/8 inch bolts to eliminate some of the potential play.

@alucidwolf

This comment has been minimized.

Copy link

@alucidwolf alucidwolf commented Sep 23, 2019

A couple questions here.

Did the Gerton tabletop come with those metal inserts to prevent warping?

I am looking at doing something similar, but only with the Idasen underframe and Barkaboda 74" countertop. Do you see any issues in trying to do this with these two items following your example?

@babakbani

This comment has been minimized.

Copy link

@babakbani babakbani commented Mar 22, 2020

Thank you for sharing these files. I followed the instructions and ended up with a stand-up desk with gorgeous stained wood top and tempered glass covering that for a smoother surgface. Wife approves.

@briancors

This comment has been minimized.

Copy link

@briancors briancors commented Jun 28, 2020

This post is amazing. I was able to use it to attach the Idåsen sit/stand desk base to a Gerton tabletop. Thank you for sharing this, and the tips on how to put it all together!

@kirschre

This comment has been minimized.

Copy link

@kirschre kirschre commented Jul 10, 2020

hey @briancors, I'm gonna attempt the same (gerton top + idasen base). Were you able to use the insert nuts/screw sizes listed above? Looks like the mounting hole locations will be a bit different, but I should be able to figure that out. Anything I should watch out for? TIA!

Editing to confirm that the mounting hardware listed above worked great for the idasen base (though you'll need 8 insert nuts/bolts). I also used #8 J hooks to attach the cable management "hammock". Thanks again for the guide OP, I'm quite happy with the results 😄

@briancors

This comment has been minimized.

Copy link

@briancors briancors commented Jul 20, 2020

Hey there, @kirschre - just saw this! Yep, I used the same hardware that was listed above, but [8] screws and insert nuts instead of [4]. I sanded it and finished it with some water-based poly and it turned out great. Most stable and sturdy standing desk I've encountered! For the cable management pouch/thing I used the same trick drilling the holes and used the included plastic attachment hardware that IKEA provided.

@smnlng

This comment has been minimized.

Copy link

@smnlng smnlng commented Aug 10, 2020

To build on some of the previous posts - for those of you doing the Idasen and Gerton combo, keep in mind that the Idasen does not use the same hardware as the Bekant (the plugs). Instead, it uses 8 flat metal hex screws and I had to use a 3/16" drill bit to drill the holes in order to use the Idasen hardware onto the Gerton. I didn't purchase the insert nuts and it seemed to work fine.

@TedCot

This comment has been minimized.

Copy link

@TedCot TedCot commented Aug 26, 2020

Thank you for sharing your knowledge. I'm attempting to do the same with a Gerton top and Idasen legs.
The first problem I ran into was that there were no flanged insert nuts available where I live. I've checked with 5 Home Depot, Lowes and Lee Valley, and the only kinds of insert nuts I was able to get my hands on were either the plain (supposedly for softwood) and the threaded ones by E-Z Lok (https://www.ezlok.com/ezknife-insert-400-3?_ga=2.148403824.695032803.1598287426-1267185150.1598287426).
When I screwed the E-Z Lok nuts into the 3/8" holes I've drilled according to the manufacturer's instructions, the area around the hole immediately bulges out.
Can someone please advise if I'm using the wrong kind of nuts or would I need to drill a slightly bigger hole?
Thanks in advance for your help.

@kirschre

This comment has been minimized.

Copy link

@kirschre kirschre commented Aug 26, 2020

@TedCot I ran into the same trouble with home depot/lowes, but was able to find all the mounting hardware at a smaller Ace shop - they seem to have the widest selection of fasteners in my area. Looking at that ez lok product page, it says to use a drill size of 25/64" which is indeed slightly larger than 3/8" (0.391" vs 0.375" respectively).

@TedCot

This comment has been minimized.

Copy link

@TedCot TedCot commented Aug 28, 2020

@kirschre You're right. Got my hands on a 25/64" drill bit and the nuts went in fine. I was trying to get away with a 3/8" hole but that was a big rookie mistake. Thanks for your help!

@ziogaschr

This comment has been minimized.

Copy link

@ziogaschr ziogaschr commented Nov 25, 2020

Great gist. I wonder if anyone tried to paint the Gerton to look like Karlby.

@rbtmarshall

This comment has been minimized.

Copy link

@rbtmarshall rbtmarshall commented Dec 28, 2020

Thanks for this and especiallt for mentioning the specific size insert nut. Picked up the Idasen underframe and the Gerton tabletop today at Ikea. Picked up the insert nuts, screws and washers you mentioned from home depot on my way home... When assembling I used the the hex bolts that came with the Idasen and didn't use the extra washer or screws from HD .
ill most likely stain and seal the Gerton when the season permits...

@martijnrobertlaurens

This comment has been minimized.

Copy link

@martijnrobertlaurens martijnrobertlaurens commented Jan 9, 2021

@ziogaschr You can use a stain or varnish to do paint it, I assume you want to still see the grain of the wood?

Regarding assembly, I too used the original plastic screws? to mount the gerton to the bekant frame. I had the bekant corner desk, but it fit like a charm. My frame was already assembled. I just flipped over the gerton and put the entire frame on it at once to line up the holes to drill.

805B0B88-C6FA-4BD8-93BE-135D84950EB0

@ziogaschr

This comment has been minimized.

Copy link

@ziogaschr ziogaschr commented Jan 11, 2021

Thanks @martijnrobertlaurens. Looks great, nice work

@itaisod

This comment has been minimized.

Copy link

@itaisod itaisod commented Apr 23, 2021

Built a GERTON+SKARSTA desk half a year ago, holding up really well so far. I used the screws that came with the SKARSTA and just added matching threaded inserts into the GERTON. Finished with the standard STOCKARYD oil. It's holding quite a big weight with no issue (about 25kg + 25kg of the table top itself). Rock solid at the low position, acceptable wobble at the high position, and the crank isn't too hard to turn.

I had an issue where the holes on the SKARSTA didn't align completely with the threaded inserts in the GERTON. I think that was because the metal plates of the underframe weren't completely flat, so once it got pressed to the table top they stretched a bit and became misaligned. Had to use a file to adjust the holes in the underframe.

Also, after about a month there started to be an obvious color difference where the desk had been covered:
20201106_111234 - Copy

@stavros-k

This comment has been minimized.

Copy link

@stavros-k stavros-k commented May 18, 2021

Thanks for this and especiallt for mentioning the specific size insert nut. Picked up the Idasen underframe and the Gerton tabletop today at Ikea.

I'm about to get a Gerton/Idasen. How is the stability on this on both sitting height and standing height? Are you happy with it?
I'll have 3 monitors on it and mostly i'll be using it on sitting height.
TIA!

@rbtmarshall

This comment has been minimized.

Copy link

@rbtmarshall rbtmarshall commented May 18, 2021

Thanks for this and especiallt for mentioning the specific size insert nut. Picked up the Idasen underframe and the Gerton tabletop today at Ikea.

I'm about to get a Gerton/Idasen. How is the stability on this on both sitting height and standing height? Are you happy with it?
I'll have 3 monitors on it and mostly i'll be using it on sitting height.
TIA!

HI, I purchase the manual 57" Idasen underframe and 63" Gerton top, not the sit/stand model. It's very sturdy and am very happy with the purchase. I use it daily for many hours, and on my three day weekends from work, I'm on it practically all day studying for the classes I'm taking in college.

The base model has some manual bolting adjustments that can be made for the single post part of the legs, I have mine set at about halfway and it feel like a suitable height for me. I have two 24" monitors mounted onto it. Three monitors would probably take up the entire width of the 63"desktop, but the stability of the desk itself would not be an issue. I like the extra space to keep, my laptop and tablet, a small air filter, two LED key lights for zoom class meetings, a laptop and tablet, and other various things on it. There is no wobble at all and the desk feels very sturdy. I feel I could even sit or stand on it if needed.

The first week I could hear a little 'creaking' noise coming from the underframe, where it was screwed into the tabletop. It was most likely from the friction of the bolted metal settling into position. When assembling it I tightened all the bolts pretty well, there is a little room for adjusting on the non-threaded holes, and this is probably where the sound was coming from. It's been in use for a few months now and I don't hear those sounds anymore.

I'm happy with the purchase and have found no actual need to stain or seal the Gerton top yet. I bought a bottle of their mineral oil and applied that, speaking of which, I might apply it again today.

While I don't regret not buying the sit/stand model, if the additional cost weren't an issue, I probably would have bought that model instead. Having the option to stand occasionally while at the desk for long sessions would be nice.

@stavros-k

This comment has been minimized.

Copy link

@stavros-k stavros-k commented May 18, 2021

Thank you very much for all the info! Ikea will have the lifting legs in stock in a week! I'll get the tabletop to apply the oil so I can be ready!

@amoghsrivastava

This comment has been minimized.

Copy link

@amoghsrivastava amoghsrivastava commented May 25, 2021

@ziogaschr You can use a stain or varnish to do paint it, I assume you want to still see the grain of the wood?

Regarding assembly, I too used the original plastic screws? to mount the gerton to the bekant frame. I had the bekant corner desk, but it fit like a charm. My frame was already assembled. I just flipped over the gerton and put the entire frame on it at once to line up the holes to drill.

805B0B88-C6FA-4BD8-93BE-135D84950EB0

Hi this table looks great! What finish did you use here?

@ahallora

This comment has been minimized.

Copy link

@ahallora ahallora commented May 29, 2021

Never knew I would get my Ikea hack instructions from a gist, but here I am. Thanks for a thorough guide for customizing the table top for a Bekant standing desk. 😀🙌

@martijnrobertlaurens

This comment has been minimized.

@yuraymondl

This comment has been minimized.

Copy link

@yuraymondl yuraymondl commented May 30, 2021

Great gist. I wonder if anyone tried to paint the Gerton to look like Karlby.

I did. I used Minwax dark walnut and then used the 50/50 polyurethane and mineral spirits wipe-on poly method to seal it.
IMG_20190808_113726

@hype08

This comment has been minimized.

Copy link

@hype08 hype08 commented Jun 4, 2021

@yuraymondl that looks terrific! thank you for sharing. You've definitely inspired me to go after something like this. The Karlby is always sold out, and turns out to be way more expensive than the Gerton.

@fsdgadfase

This comment has been minimized.

Copy link

@fsdgadfase fsdgadfase commented Jun 10, 2021

This thread got me inspired too!
IMG_1228

Skarsta + Gerton. Still need to do some sanding and apply a varnish. Added this cable duct to keep things neat. Colour is identical to the Skarsta frame.

@FlexMcMurphy

This comment has been minimized.

Copy link

@FlexMcMurphy FlexMcMurphy commented Jul 27, 2021

@fsdgadfase
Did you get that chair from Ikea as well? What is the name and is it working well for you (and your back?)

Flex

Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
